Internal Monitoring | Weather Station | IoT Advanced Package | Custom | |
| IoT Internal Monitoring Kit | 1 | 0 | 3 | Custom |
| IoT Weather Station | 0 | 1 | 1 | Custom |
| Exploratory Pro | Multi | Multi | Multi | Unlimited |
| Data Upload | ||||
| Data Storage | ||||
| Device Support | ||||
| Exploratory Support | ||||
| Standard Warranty 1 Year | ||||
| Extended Warranty | ||||
| Payment Period | Monthly / Annual | Monthly / Annual | Monthly / Annual | Monthly / Annual |
| Minimum Term | 12 Months | 12 Months | 12 Months | Custom | Learn More | Learn More | Learn More | Contact Us |
IoT Weather Station
Monitoring the environment around you
About
Capture your local environmental data including temperature, humidity, rainfall, wind and others with the IoT Weather Station inclusive package. Utilising the IoT Exploratory tool with the included Exploratory Pro Access, your local weather data can be viewed, analysed, and compared with other devices in the IoT Exploratory ecosystem from around the world.
Be part of an ever-growing community of IoT devices whilst contributing to big global data for all to use and learn from.
What's Included
Hardware
Display Console
Sensor Body
Wind Speed Cups
Wind Vane
Mounting Kit
AC Adapter
Other
Exploratory Pro Multi Access
1 Year Hardware Warranty
Data Upload
Device Support
Exploratory Support
Features
Generate, analyse, and compare data with other IoT device in the IoT Exploratory ecosystem. With the tools and graphing features available in the Exploratory, gain a real and accurate understanding of your weather and the environment around you.

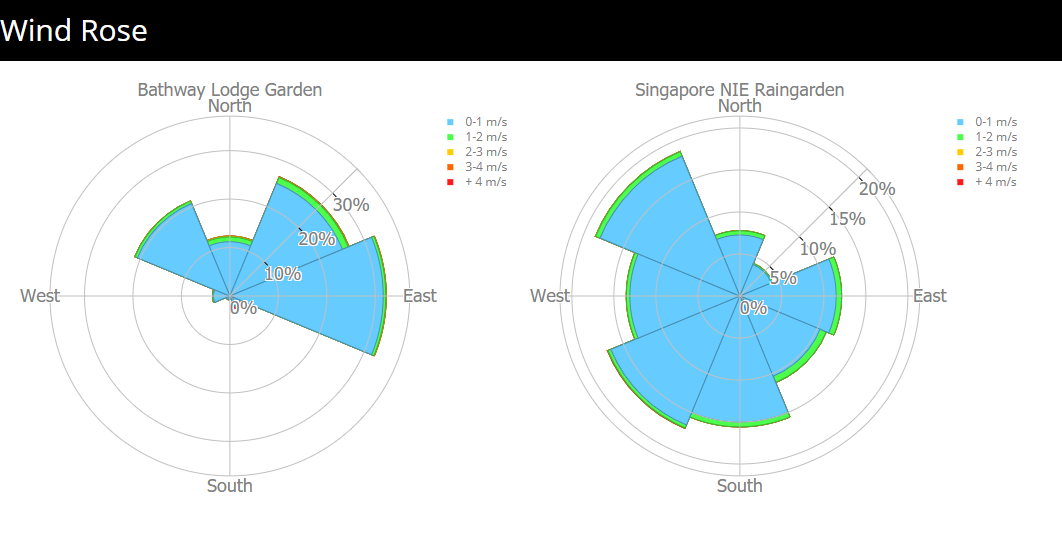

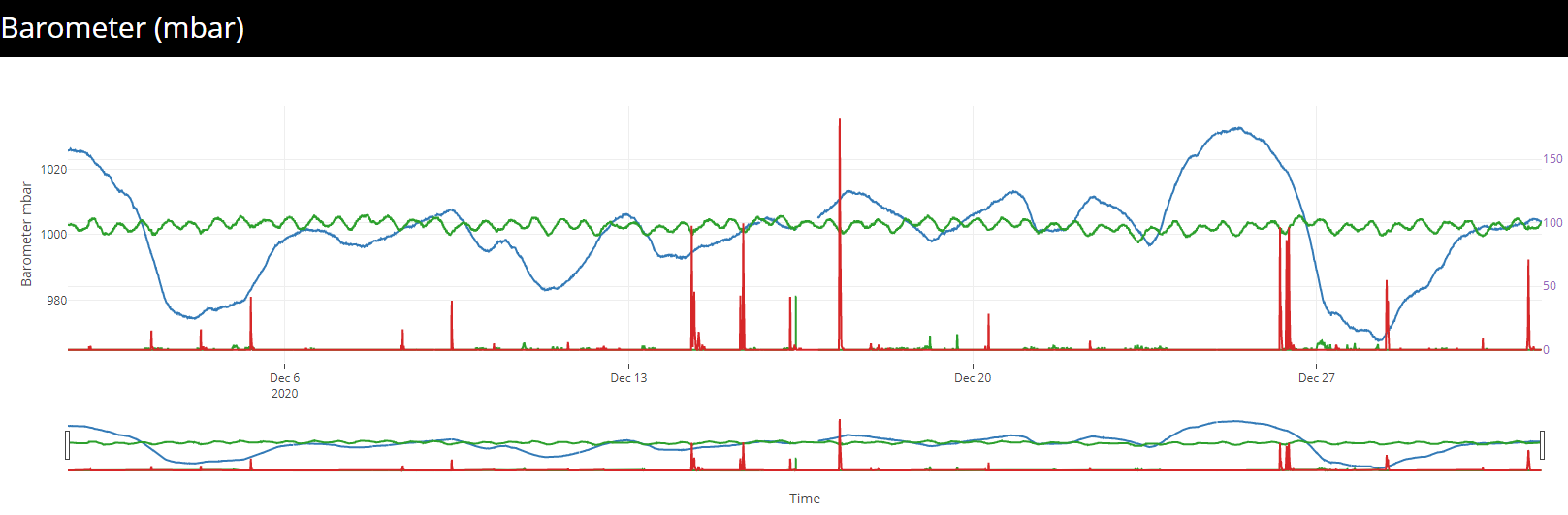

The exploratory tool offers graphing features and tools to view your data over defined periods of time whilst linking effects of multiple sensors by overlaying the graphs.

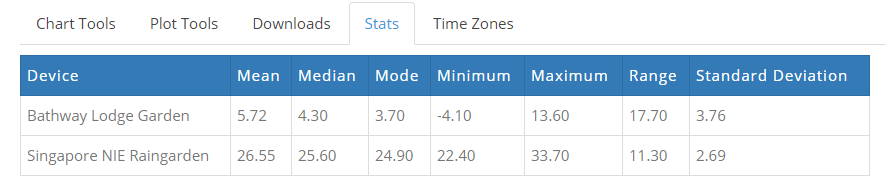

Build graphs of multiple weather stations and other IoT devices, compare the weather and external environments from around the world whilst utilising the statistics tools to take an in depth look at the numbers.
A step by step instruction guide is provided for assembling, mounting and connecting your IoT weather station to a WiFi network. See connection requirements.
Total of 11 sensor variations displayed in the IoT Exploratory tool.
Specifications
Sensor Specs
Air Temperature
Unit of Measure: °C
Range: -40 – 60 °C
Accuracy: +/- 1°C at 25°C
Working Range: -40 – 85 °C
Relative Humidity
Unit of Measure: %RH
Range: 10 – 99% RH
Accuracy: +/- 5% RH
Working Range: -40 – 85 °C
Barometric Pressure
Unit of Measure: mbar
Range: 300 – 1100 mbar
Accuracy: +/- 1.5 mbar
Working Range: -40 – 85 °C
Rain Volume
Unit of Measure: mm
Range: 0 – 9999 mm
Accuracy: +/- 10%
Working Range: -40 – 85 °C
Solar Radiation
Unit of Measure: W/m2
Range: 0 – 2000 Wm/2
Accuracy: +/- 10%
Working Range: -40 – 85 °C
Wind Speed
Unit of Measure: m/s
Range: 0 – 50 m/s
Accuracy: +/- 10%
Working Range: -40 – 85 °C
Device Specs
Transmission Distance in Open Field: 100m
Data Sample rate: Minimum 3 seconds
Data Upload Rate: Typically 15 minutes.
Connection Type: Wi-Fi (Other options available)
Power Requirements:
External – Solar Panel (Built In) 2 x AA 1.5V LR6 alkaline batteries (Backup)
Internal – 5V DC Adapter and 3 x AA 1.5V LR6 alkaline batteries and
Connection
WiFi connection by standard. Option to connect via mobile networks available).
Captive portal logon systems are not compatible. Information on how to manage this please contact us.
