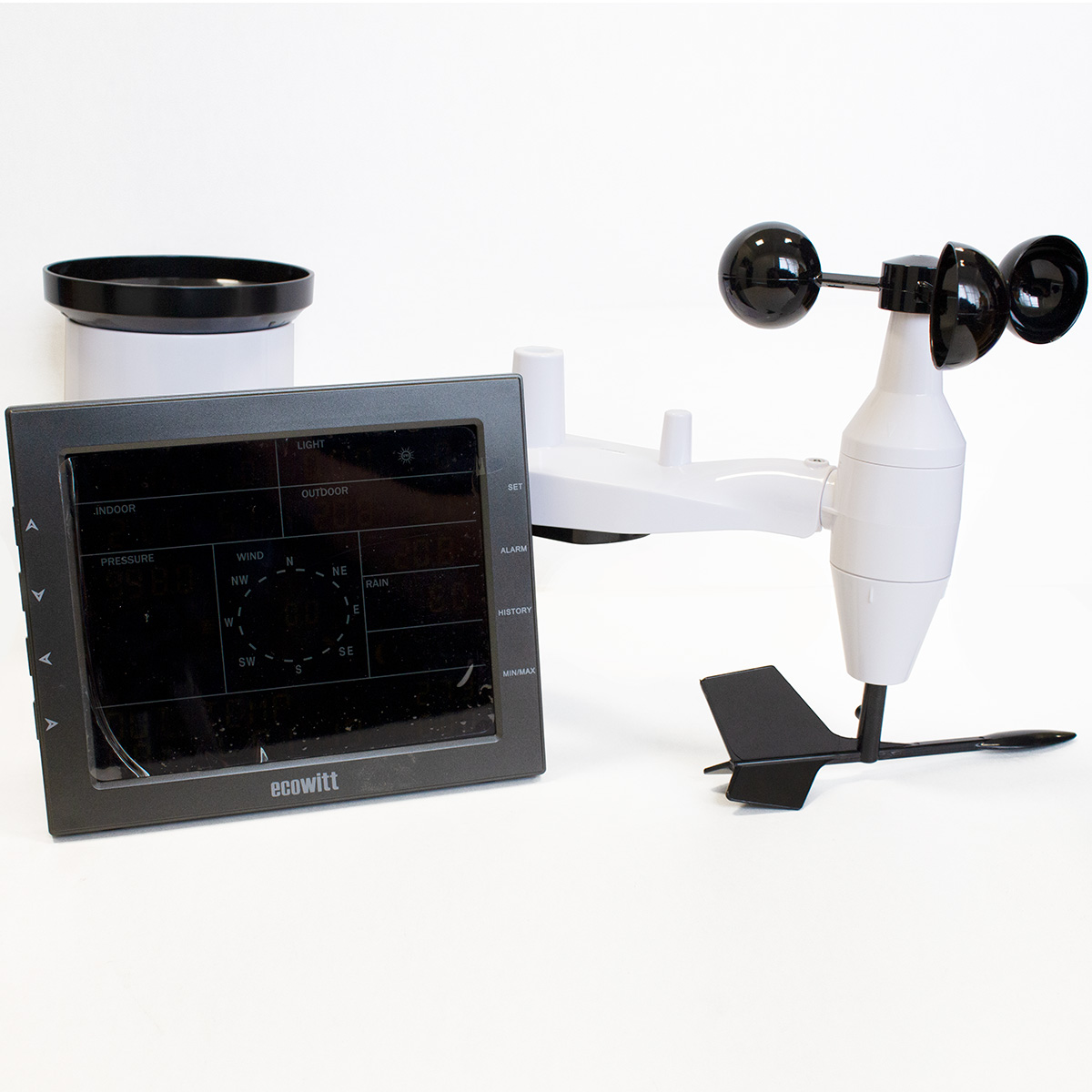

IoT Weather Station

Description

About

Capture your local environmental data including temperature, humidity, rainfall, wind and others with the IoT Weather Station inclusive package. Utilising the IoT Exploratory tool with the included Exploratory Pro Access, your local weather data can be viewed, analysed, and compared with other devices in the IoT Exploratory ecosystem from around the world.

Be part of an ever-growing community of IoT devices whilst contributing to big global data for all to use and learn from.

Features

Generate, analyse, and compare data with other IoT device in the IoT Exploratory ecosystem. With the tools and graphing features available in the Exploratory, gain a real and accurate understanding of your weather and the environment around you.

The exploratory tool offers graphing features and tools to view your data over defined periods of time whilst linking effects of multiple sensors by overlaying the graphs.

Build graphs of multiple weather stations and other IoT devices, compare the weather and external environments from around the world whilst utilising the statistics tools to take an in depth look at the numbers.

A step by step instruction guide is provided for assembling, mounting and  connecting your IoT weather station to a WiFi network. See connection requirements.

Total of 11 sensor variations displayed in the IoT Exploratory tool.

Setup Instructions

You can view our setup instructions in the learning center Learning Centre

IoT Weather Station Sensor Specs

• Air Temperature
  • Unit of Measure: °C
  • Range: -40 – 80°C
  • Accuracy: +/- 1°C at 25°C
  • Working Range: -40 – 85°C
• Barometric Pressure
  • Unit of Measure: mbar
  • Range: 300 – 1100 mbar
  • Accuracy: +/- 1.5 mbar
  • Working Range: -40 – 85°C
• Relative Humidity
  • Unit of Measure: %RH
  • Range: 10 – 99 %RH
  • Accuracy: +/- 5 %RH
  • Working Range: -40 – 85°C
• Rain Volume
  • Unit of Measure: mm
  • Range: 0 – 9999 mm
  • Accuracy: +/- 10%
  • Working Range: -40 – 85°C
• Solar Radiation
  • Unit of Measure: W/m2
  • Range: 0 – 2000 Wm/2
  • Accuracy: +/- 10%
  • Working Range: -40 – 85°C
• Wind Speed
  • Unit of Measure: m/s
  • Range: 0 – 50 m/s
  • Accuracy: +/- 10%
  • Working Range: -40 – 85°C

IoT Weather Station Device Specs

• Data Upload Rate:  5 minutes. (Can be changed)
• Transmission Range in open field: 100m
• Internet Connection Type: WiFi
• Power Requirements: 5x AA (Not Included)
• Power Requirements: 5V DC Mains PSU (Included)
