IoT Internal Monitoring Kit
Internal environmental monitoring
About

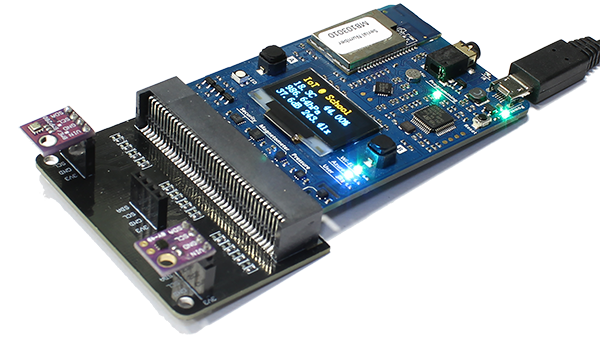

Collect, analyse, and share internal environmental data with the IoT Internal Monitoring Kit. This assemble yourself, cloud-based sensing system includes a combination of sensors: light, temperature, pressure, humidity, and sound, all of which can be used to understand the environment around you.
Utilising the IoT Exploratory tool, the device data can be viewed, analysed, and compared with other devices in the IoT Exploratory ecosystem from around the world.
What's Included
Hardware
IoT Developer Board
I2C Interface
Environmental Sensor
Light Sensor
2 x Sensor Extension Cables
USB Cable
Power Adapter
Other
Exploratory Pro Multi Access
1 Year Hardware Warranty
Data Upload
Device Support
Exploratory Support
Features
Generate, analyse, and compare data with other IoT device in the IoT Exploratory ecosystem. With the tools and graphing features available in the Exploratory gain a real and accurate understanding of the your internal environment.

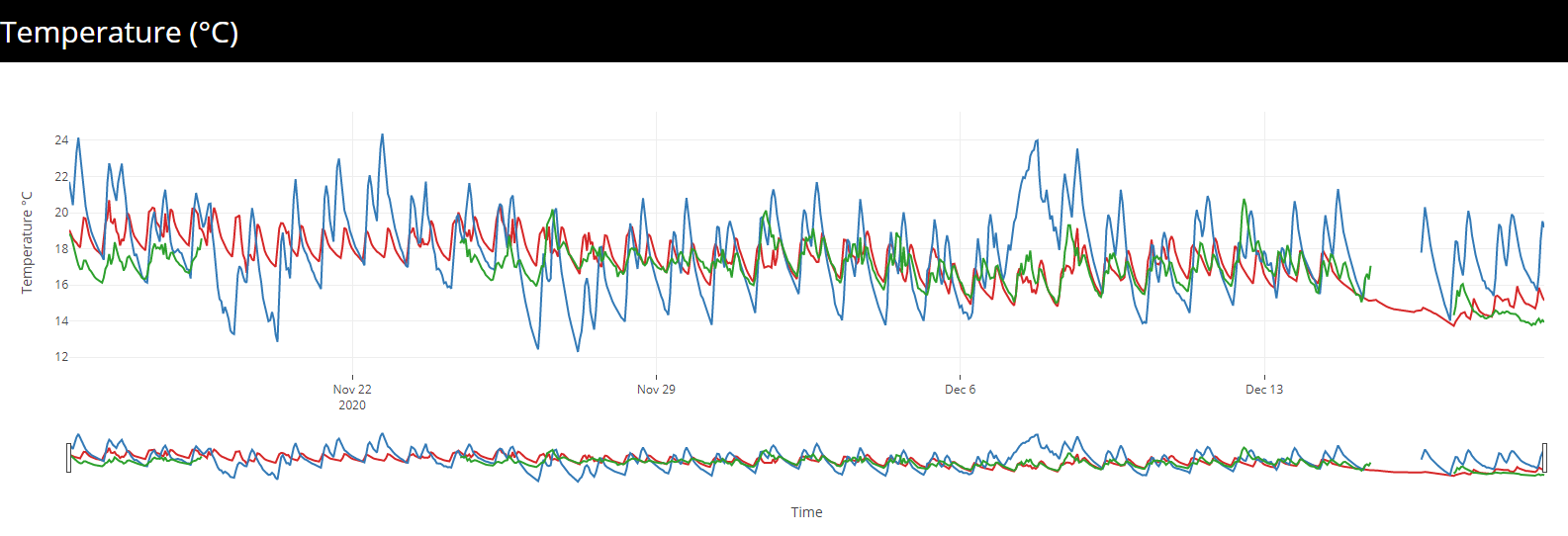

The exploratory tool offers graphing features and tools to view your data over defined periods of time whilst linking effects of multiple sensors by overlaying the graphs.

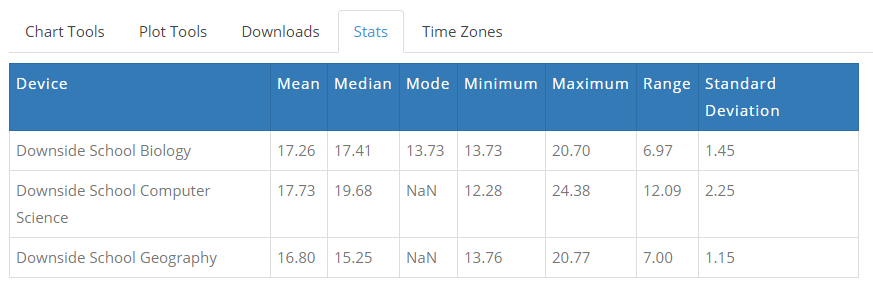

Build graphs of multiple devices to compare environments in multiple classrooms, offices or rooms in your house whilst utilising the statistics tools to take an in depth look a the numbers.
Simple step by step process to connect the device to a WiFi network. See connection requirements.
Specifications
Sensor Specs
Air Temperature
Unit of Measure: °C
Range: -40 – 80°C
Accuracy: +/- 0.5°C at 25°C
Working Range: -40 – 85°C
Relative Humidity
Unit of Measure: %RH
Range: 0 – 100%RH
Accuracy: +/- 3%RH
Working Range: -40 – 85°C
Barometric Pressure
Unit of Measure: mbar
Range: 300 – 1100 mbar
Accuracy: +/- 1.5 mbar
Working Range: -40 – 85°C
Light Level
Unit of Measure: Lux (lx)
Range: 0 – 120000lx
Accuracy: +/- 10%
Working Range: -40 – 85°C
Sound Level
Unit of Measure: dB
Range: 45 – 100dB
Accuracy: +/- 5%
Working Range: -40 – 85°C
Device Specs
Data sample rate: Minimum 3 seconds
Data Upload Rate: Typically 1 or 5 minutes.
Connection Type: WiFi
Power Requirements: 5V micro USB
Connection
WiFi connection by standard. Option to connect via mobile networks available).
Captive portal logon systems are not compatible. Information on how to manage this please contact us.
